MST141 electrochemical hydrogen sensor is a fuel cell-type sensor. Hydrogen and oxygen undergo corresponding redox reactions at the working electrode and counter electrode, releasing electric charges to form a current. The magnitude of the generated current is proportional to the hydrogen concentration and follows Faraday's Law. The level of hydrogen concentration can be determined by measuring the magnitude of the current.
Model Click to consult
Sensor features:
It exhibits high sensitivity and high selectivity to hydrogen, with an extremely fast response to hydrogen. It also features linear output, a long service life, an environmentally friendly structural design, and a unique anti-leakage structure.
Main applications:
It is widely suitable for hydrogen concentration detection in fields such as commercial applications, energy storage power stations, and vehicle-mounted systems.
product specification：
|
project |
parameter |
|
Object gas |
Hydrogen |
|
Measuring range |
0~1000ppm |
|
Extreme overload |
2000ppm |
|
Output signal |
0.2~0.8nA/ppm |
|
Repetitiveness |
±2% |
|
Resolution |
0.5ppm |
|
Typical response time (t90) |
＜60 Seconds |
|
Long-term output drift |
＜2% |
|
Expected life |
10 years |
|
Working temperature |
-20~50℃ |
|
Humidity at work |
15~90%RH |
|
Working pressure range |
0.1MPa±10% |
|
Recommended load resistance |
1KΩ |
|
Offset voltage |
no requirement |

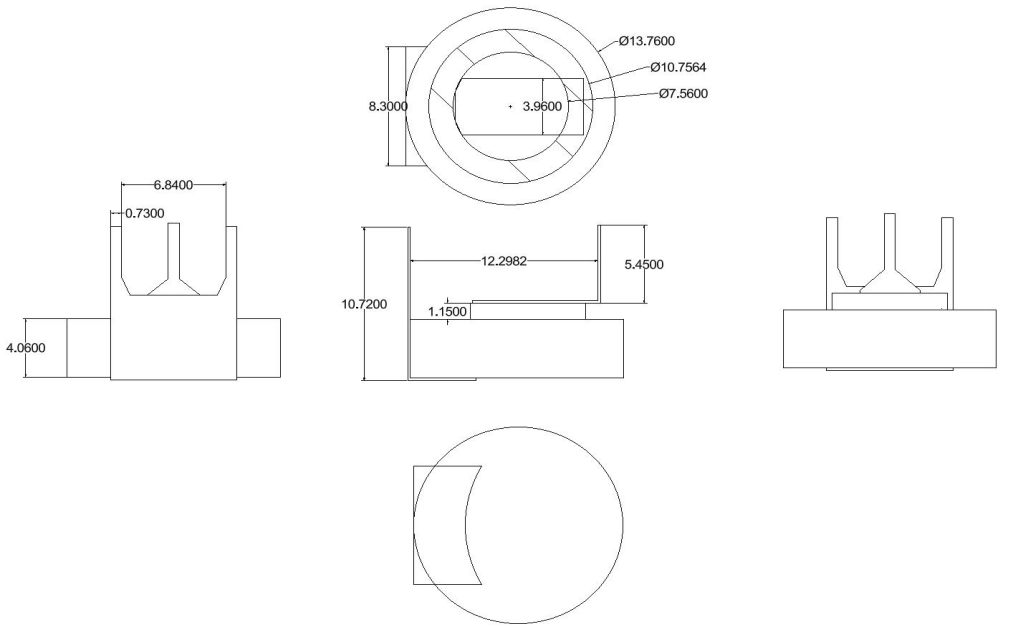

Structural dimensions diagram:
